    DRY CLEANING MACHINE SERIES

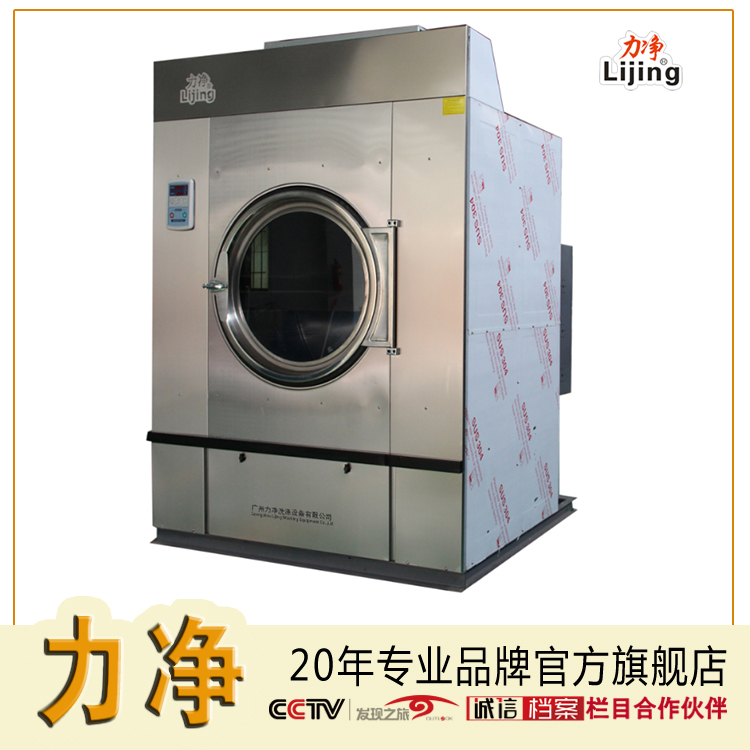

    Industrial dryer HGQ/HGD/HGR series
    Model: HGQ-10-100kg
    View: 6622
    Have requirements or questions? Please contact us:
    +8613928870739
    Washing equipment experts unriddling for you!


    This series of industrial drying machine made of stainless steel, reduce fabric wear. Its outstanding advantages are:
    1.An optimization design cooling and fan, large size heater, fast heat exchange and use of high-energy, fast heating, drying time is short.
    2 High-density drum vents to ensure adequate heat through the linen, the cloth can be fully dried in the shortest possible time.
    3 large diameter loading doors for easy loading and unloading clothes, door design uses overtake port design form, avoid pulling linen. Safety interlocks ensure fitted clothes door open state machine starts braking.
    4 Computer control can be precisely set the time and drying temperature dryer, computer controller with touch-button design, flexible and reliable operation.
    5 large plush collection network, anti-dust mesh machine, drawer-type structure, pull it out clean, large area to ensure the smooth flow of through-hole rate, large-diameter fan duct, it is not easy to plug plush, all in order ensure quick drying.


    HGR series fully automatic gas dryer
    Gas Dryer is our newly developed energy-saving products, ease of use, wide range of energy conservation. Its outstanding advantages are:
    A high thermal efficiency, ease of use, the use of gas heating, low energy consumption, fast heat exchange and heat utilization is high.
    2 High-density drum vents to ensure adequate heat through the linen, the cloth can be fully dried in the shortest possible time.
    3 large diameter loading doors for easy loading and unloading clothes, door design uses overtake port design form, avoid pulling linen. Safety interlocks ensure fitted clothes door open state machine starts braking.
    4 Computer control can be precisely set the time and drying temperature, computer controller with touch-button design, flexible and reliable operation.
    5 large plush collection networks, anti-dust mesh machine, drawer-type structure, pull it out clean, large area to ensure the smooth flow of through-hole rate, large-diameter fan duct, it is not easy to plug plush, all in order ensure quick drying.
    6 Use two V-belt gear transmission, low noise, small vibration, long working life, easy maintenance.


    型 號 Model HG-15 HG-25 HG-35 HG-50 HG-70 HG-100
    額定容量(KG
    Rated capacity
    15 25 35 50 70 100
    加熱方式
    Heating method
    Q/D/R S/E/G S/E/G S/E/G S/E/G S/E/G
    滾筒直徑(mm)
    Roller diameter
    Ф750 Ф970 Ф970 Ф1150 Ф1200 Ф1450
    滾筒深度(mm)
    Roller depth
    670 650 900 970 980 1220
    轉筒速度(r/min)
    drum speed
    45 42 42 36 32 30
    蒸汽壓力(mpa)
    steam pressure
    0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6
    額定電壓(V)
    rated voltage
    380 380 380 380 380 380
    主電機功率(KW
    motor power
    0.55 0.75 0.75 1.1 1.1 2.2
    風機功率(KW
    fan power
    0.55 0.75 0.75 1.5 1.1 1.5X2
    加熱功率(KW
    heating power
    14 24 32 35 44 50
    燃氣耗量(kw)
    gas consumption
    2 2.5 3.5 4.5 4.5 4.5
    進蒸汽口徑(mm)
    steam inlet
    DN32 DN32 DN32 DN32 DN32 DN32
    疏水口徑(mm)
    Hydrophobic caliber
    DN25 DN25 DN25 DN25 DN50 DN50
    壓縮空氣接口口徑(mm)
    Compressed air interface
    Ф6 Ф6 Ф6 Ф6 Ф6 Ф6
    排風管口徑(mm)
    Exhaust duct diameter
    Ф160 Ф170 Ф170 Ф200 Ф275 Ф275
    外形尺寸(寬)mm
    Dimension (with)
    840 1060 1060 1240 1600 1625
    外形尺寸(深)mm
    Dimension(depth)
    1150 1150 1450 1600 1780 1810
    外形尺寸(高)mm
    Dimension (height)
    1560 1950 1950 2150 2500 2510
    重量(KG
    Weight
    380 450 520 650 1000 1400
    型號說明:Q-蒸汽加熱,D-電加熱,R-燃氣
    Model Note: Q: steam heating, D-electric heating, R-gas heating
